AUTO PIPE BUNDLE PACKING MACHINE

1 / 6

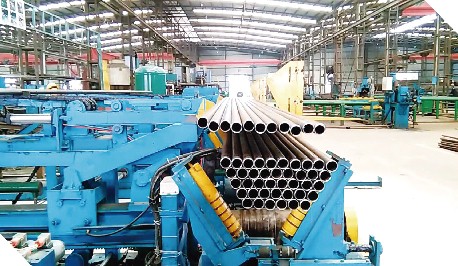

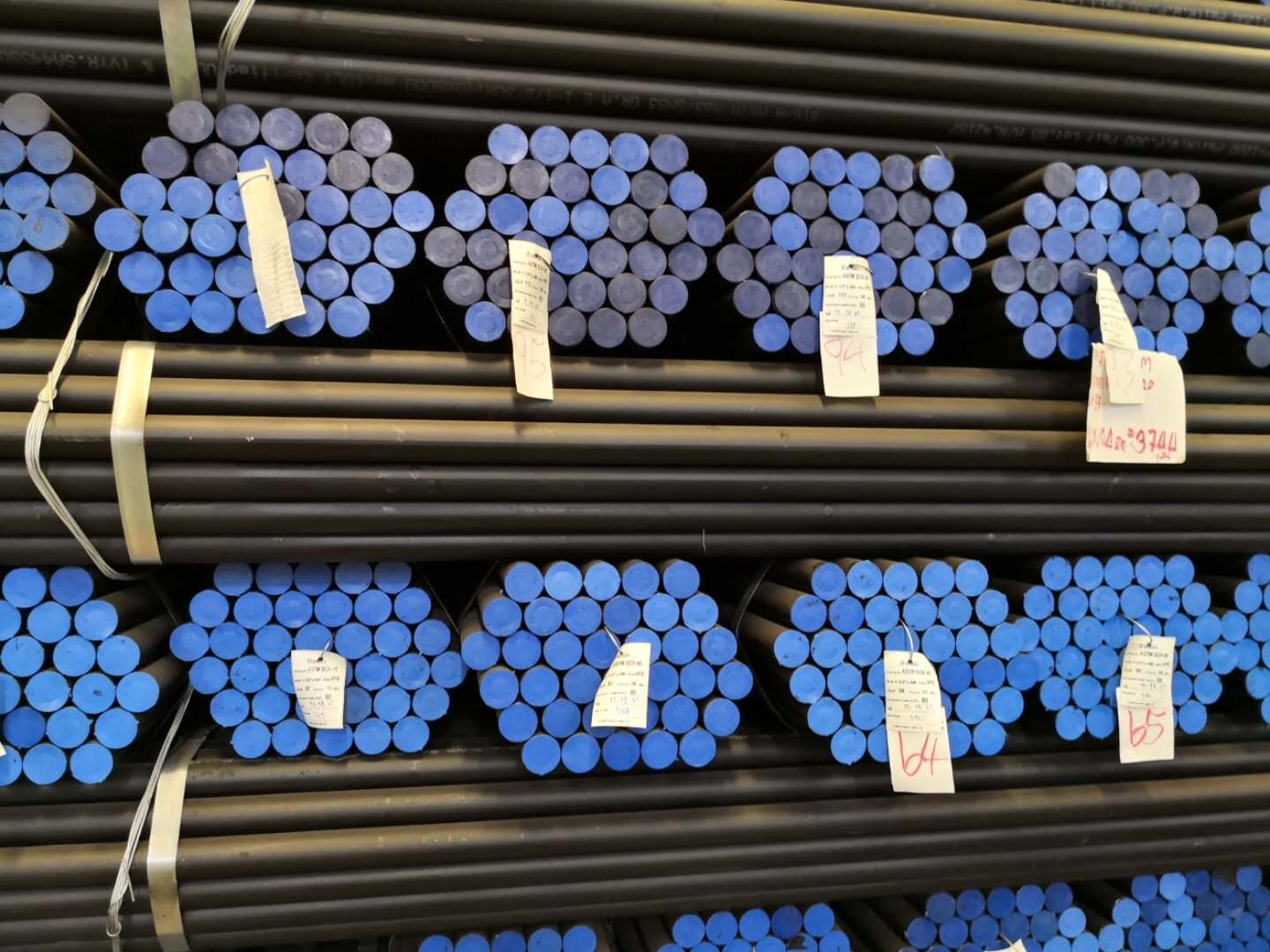

Hexagonal Bundle Packing
2 / 6

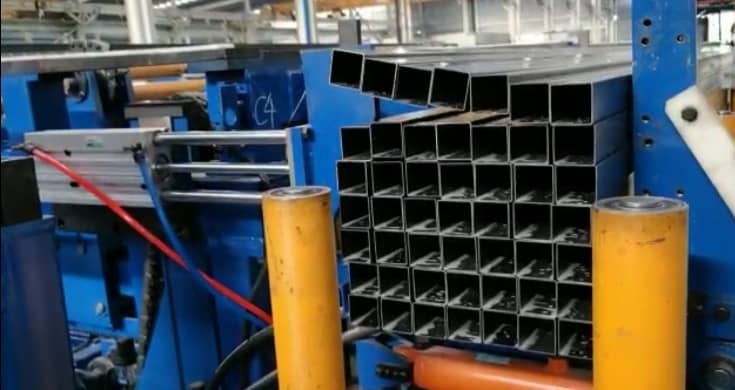

Square Bundle Packing
3 / 6

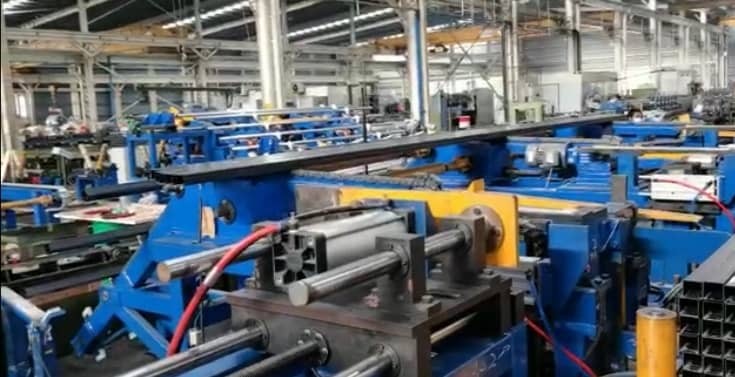

Pipe Layer End Pusher
4 / 6

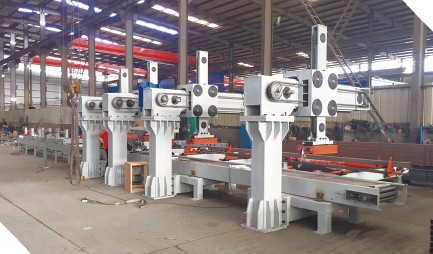

Magnet Layer Transfer
5 / 6

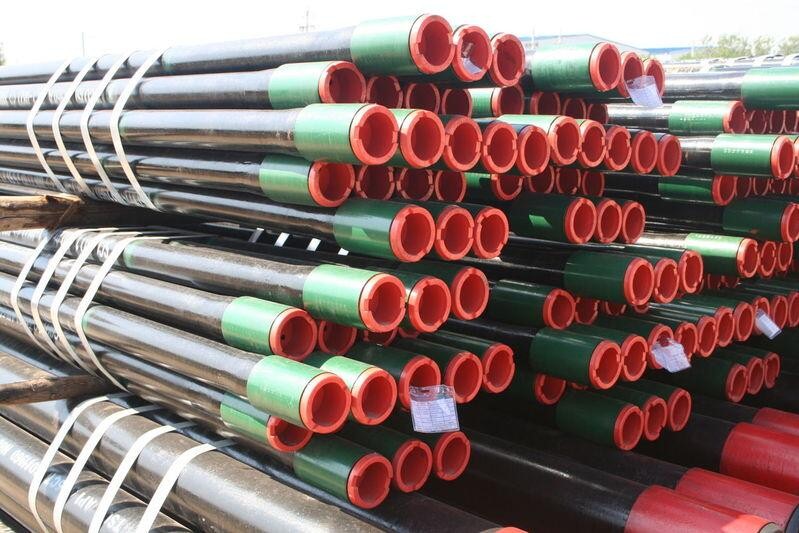

Auto Packing with Coupling
6 / 6
Special Bundle Shape for Export Container Loading

89 Auto Packing with Bundle Transfer Trolley



114 Auto Packing with Blade type Layer Transfer



168 Auto Packing with Magnet Layer Transfer and Bundle Transfer Trolley



76 Auto Packing (Square) Bundle End Discharge



C-Channel Auto Packing with Channel Turn Over











SMACO Pipe Bundling Machine are Fully Automatic for Round pipe Hexagonal Bundle, Square / Rectangular Bundle, U-channel auto packing with channel turn over, and special non symmetrical bundle shape to optimise container loading for export.



For pipe with end coupling, system allows alternate layer pipe end off-set for optimum packing dimension.



MACHINE FEATURE



Auto Packing Machine size range ½” to 8”, length 4m to 12m, suitable for black pipe, galvanised pipe and colour coated pipe.



Design to receive pipe from mill with Up Chain Conveyor, pipe Counting, pipe End Alignment and pipe Layer Transfer to packing stand.



Packing stand shall lower gradually to receive pipe layer until bundle is full. All system are Fully Automatic with PLC for pipe size and bundle shape entry.



PIPE LAYER TRANSFER

- By Transfer Blade activated by pneumatic or hydraulic depending on weight of pipe

- By Magnet with Servo Drive control for layer transfer



BUNDLE DISCHARGE

Depending on factory space and mill layout

- Side Discharge, with bundle trolley remove bundle from packing stand, this allow packing stand to move up and continue packing new bundle

- End Discharge, packing stand lower until bundle sit on roller conveyor to transfer bundle out from packing stand



BUNDLE STRAPPING

- Fully Automatic bundle strapping with auto strap feeding and overlapped strap pressed to tighten

- Manual with pneumatic hand held strapping machine



After strapping, pipe bundle shall be removed by bundle chain conveyor for temporarily storage while waiting for crane



ADVANTAGES

- Automatic Pipe Packing Machine Reduce man power & Increase production yield

- Production Yield is dependent on how fast you can remove pipe bundle from mill, the faster you can remove bundle , the faster you can run the mill

- Automatic Pipe Packing makes Bundling Work easier and less tiring for worker, this allow mill to run at higher speed continuously



SMACO machines are of heavy duty constructions with quality components to ensure dependable performance. We offer total solution for steel pipe mill line & finishing equipment to optimise Production



Efficiency which dependent on how fast you can feed coil to mill and how fast you can remove pipe bundle from mill.









27 Years In Steel Pipe Industry With Reliable And Heavy Duty Pipe Mill Equipment

Our reputation for uncompromising standards can be seen in the range of products and services we offer:

  • ERW pipe mill lines and machineries including entry coil handling and joining system, pipe transfer and bundling system
  • Pipe finishing equipment with transfer and handling system for automated finishing operation, namely end facing, threading, straightening and hydro testing
  • Roll forming lines and machinery for profiles including on-line punching and embossing
  • Mill tooling, hollow section and roll forming profile. Experienced design engineer with COPRA Roll form software ensure precise mill tooling design
