API PIPE MILL LINE
1 / 8

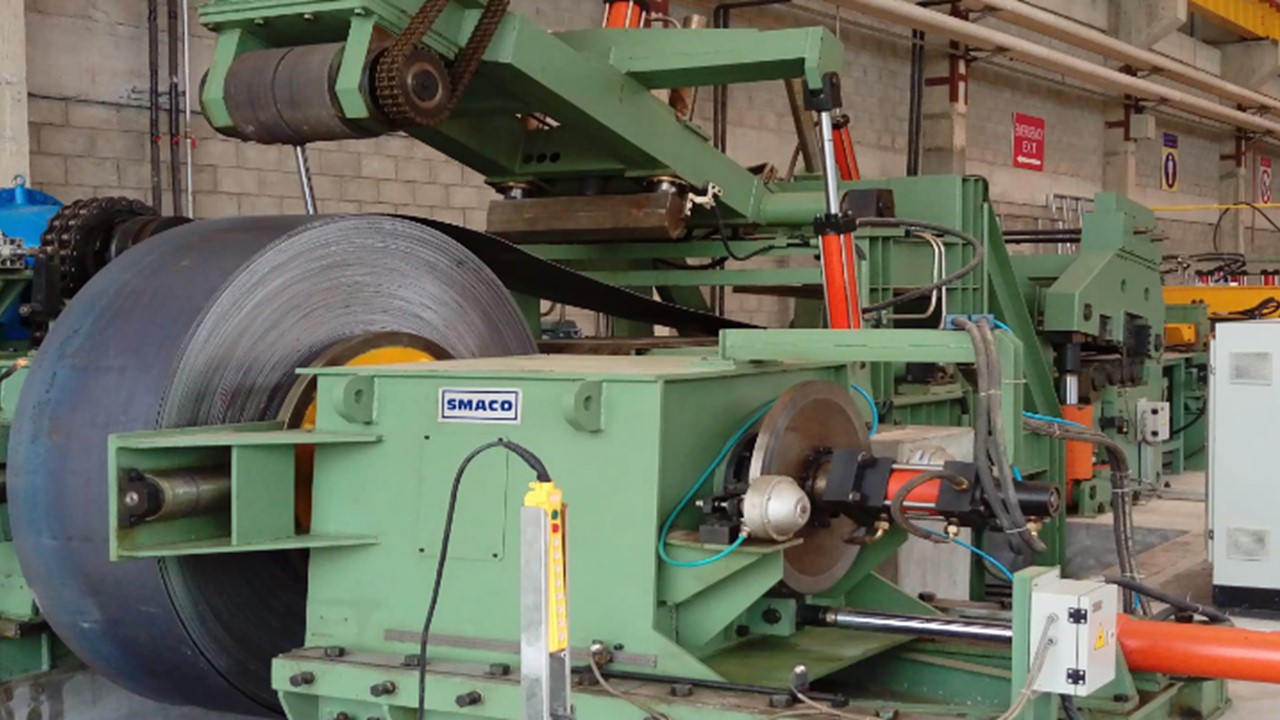

API Pipe Mill Line - Uncoiler Peeler Hold Down
2 / 8

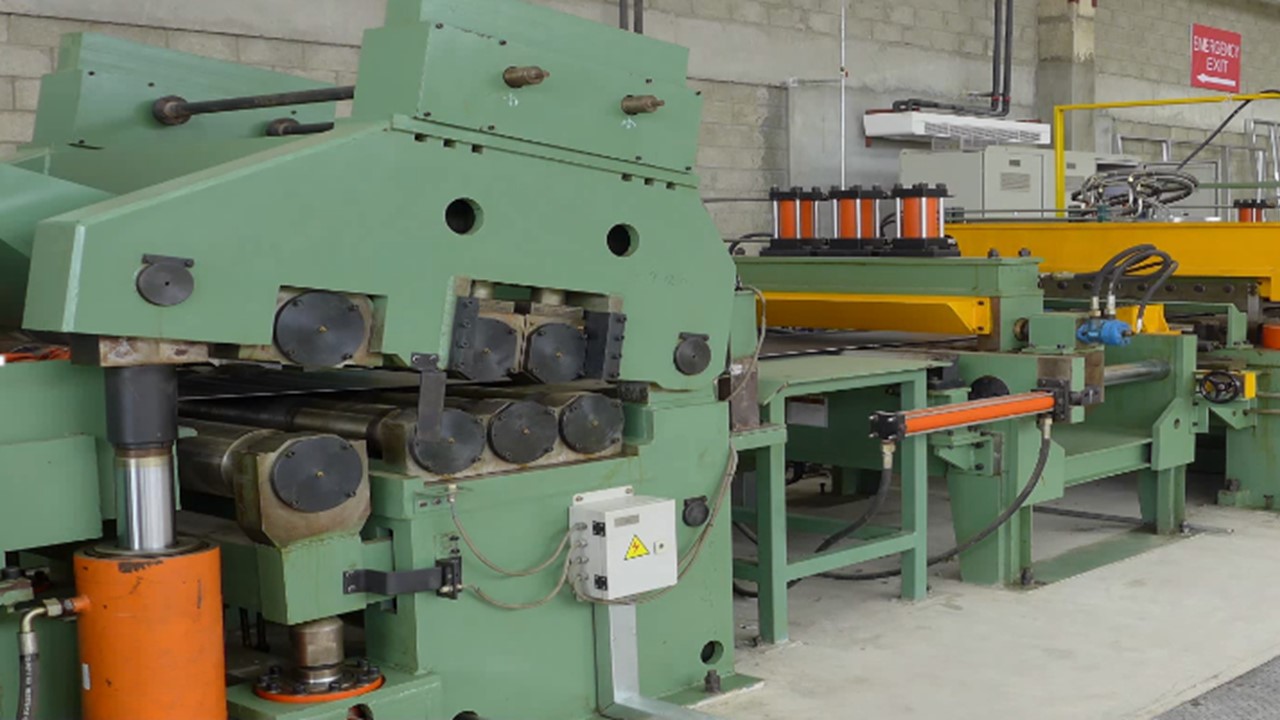

API Pipe Mill Line - Flattener
3 / 8

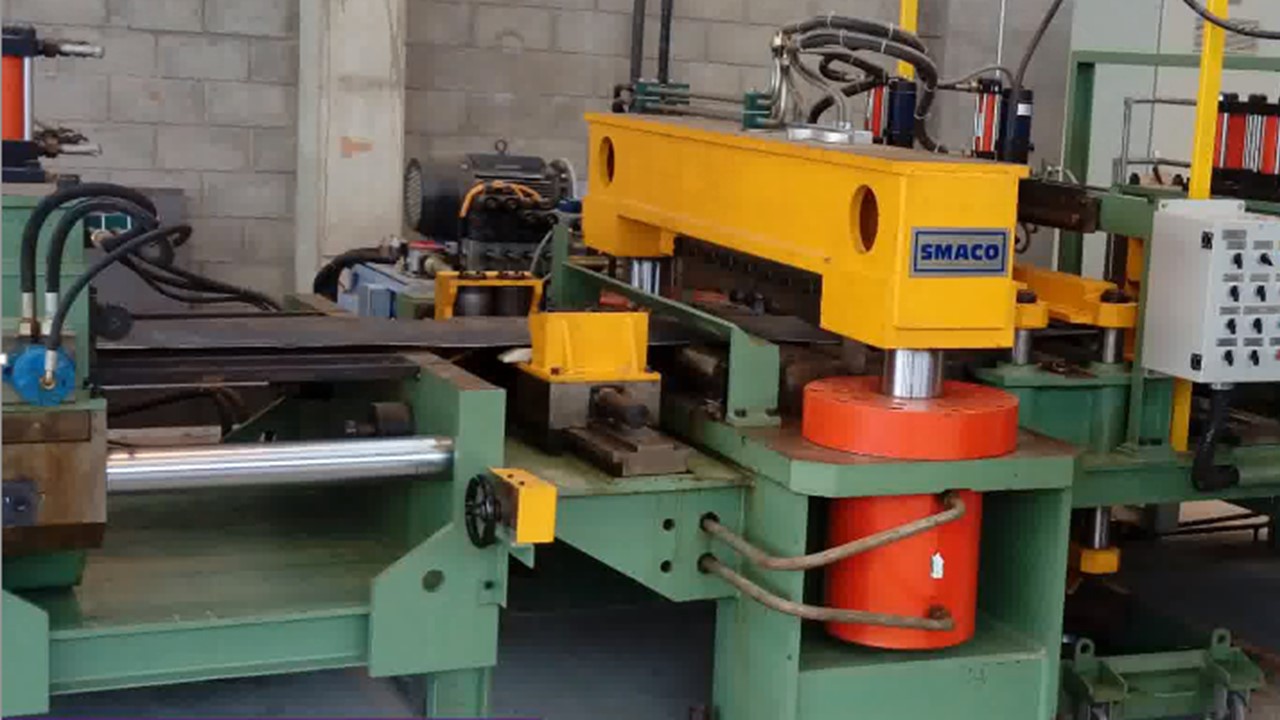

API Pipe Mill Line - Sheer End Welder
4 / 8

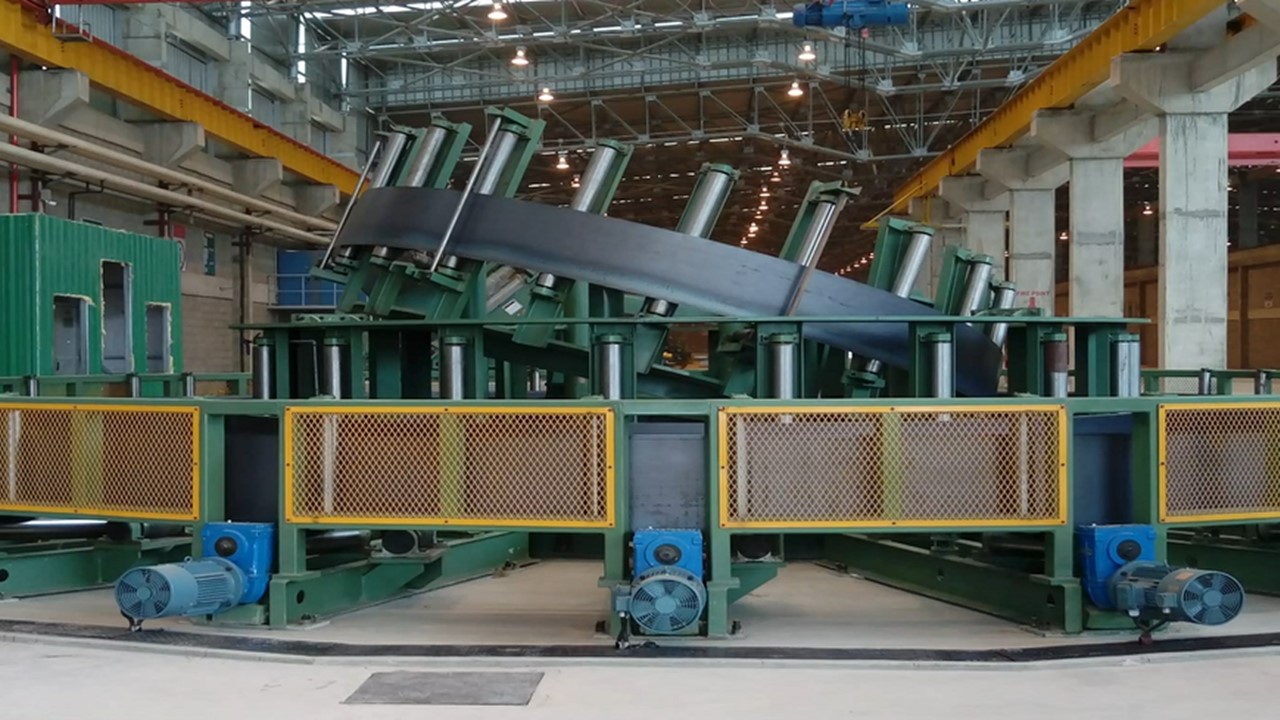

API Pipe Mill Line - Horizontal Accumulator
5 / 8

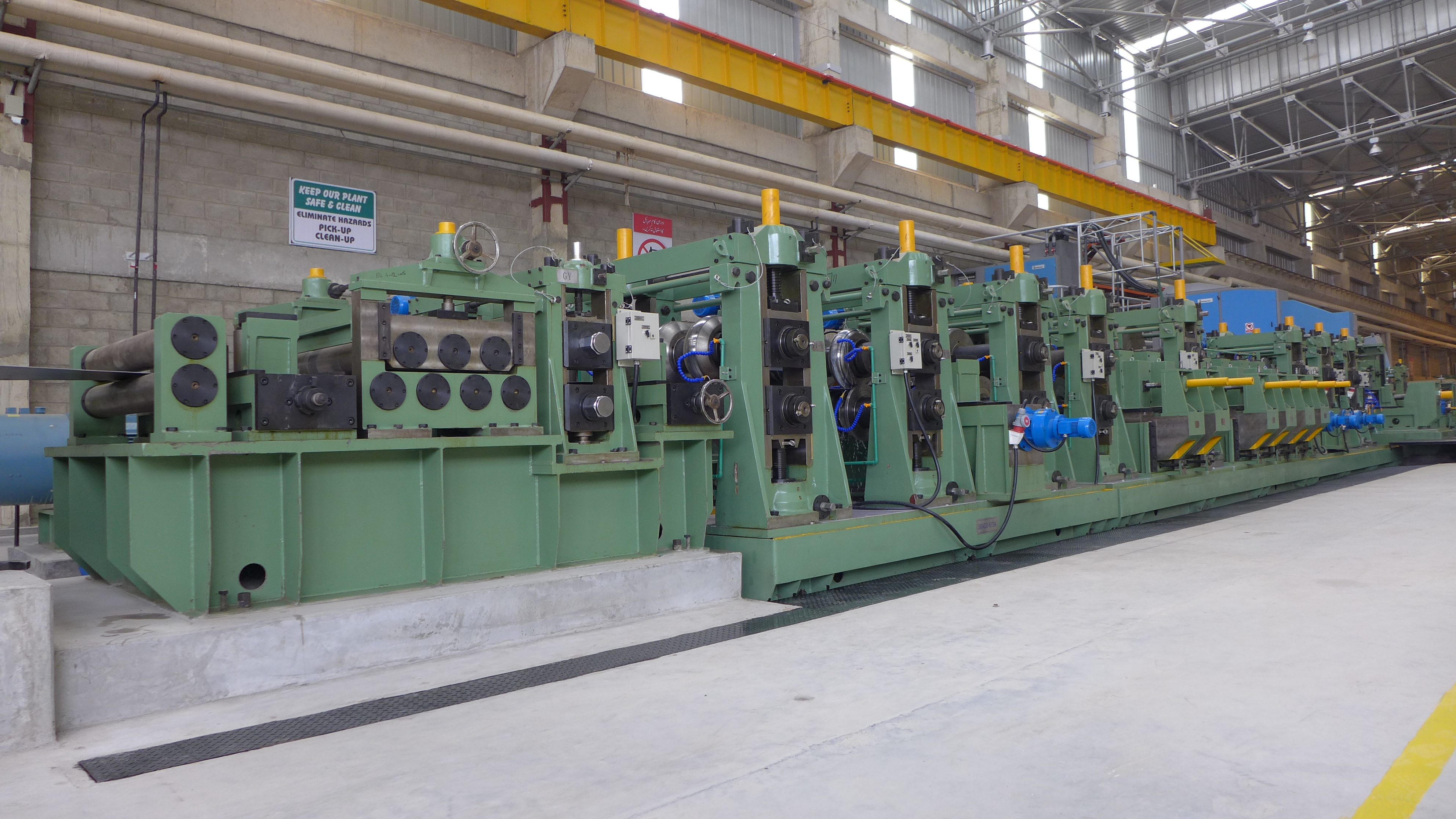

API Pipe Mill Line - Forming Mill
6 / 8

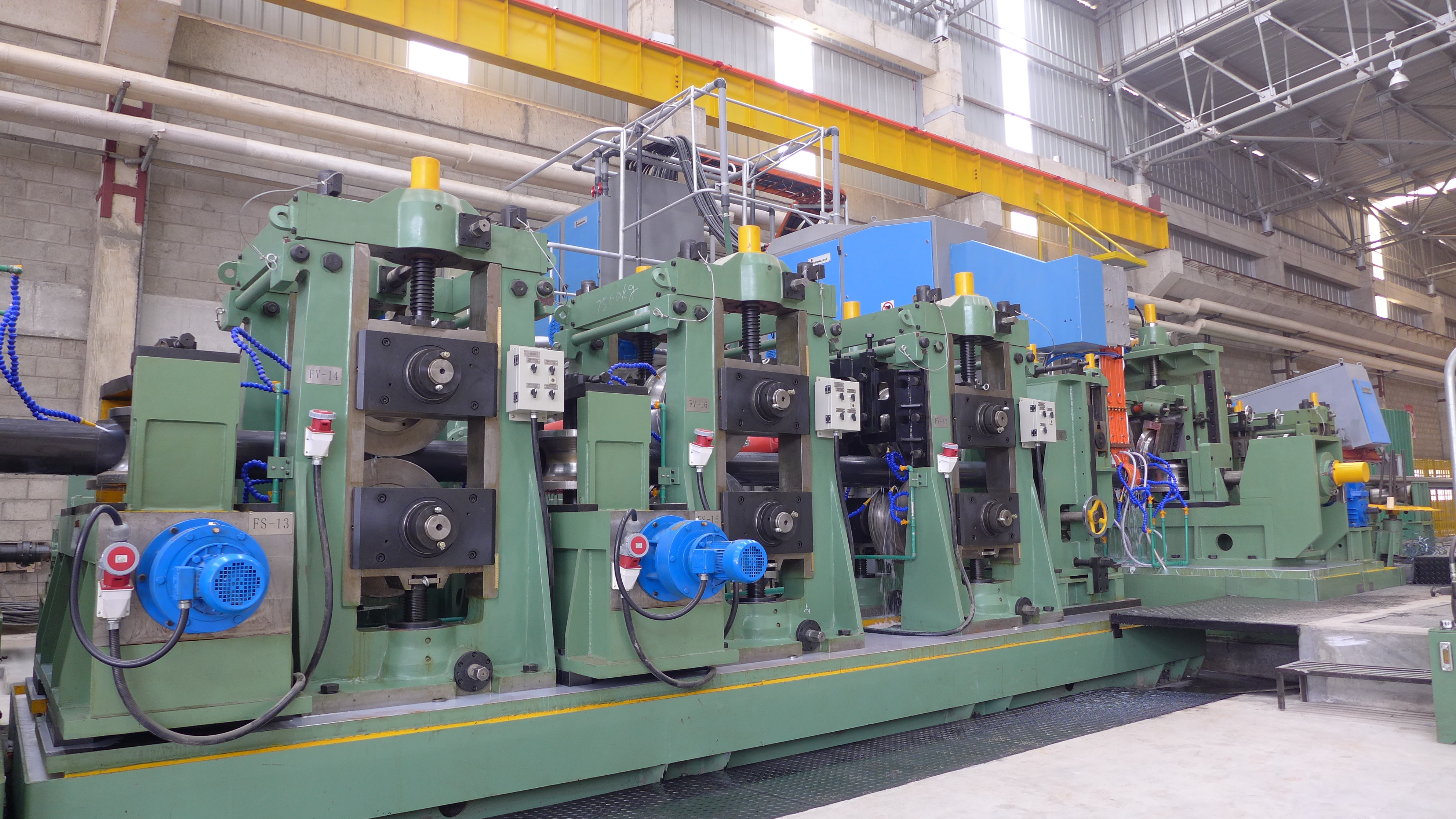

API Pipe Mill Line - Welding Section
7 / 8

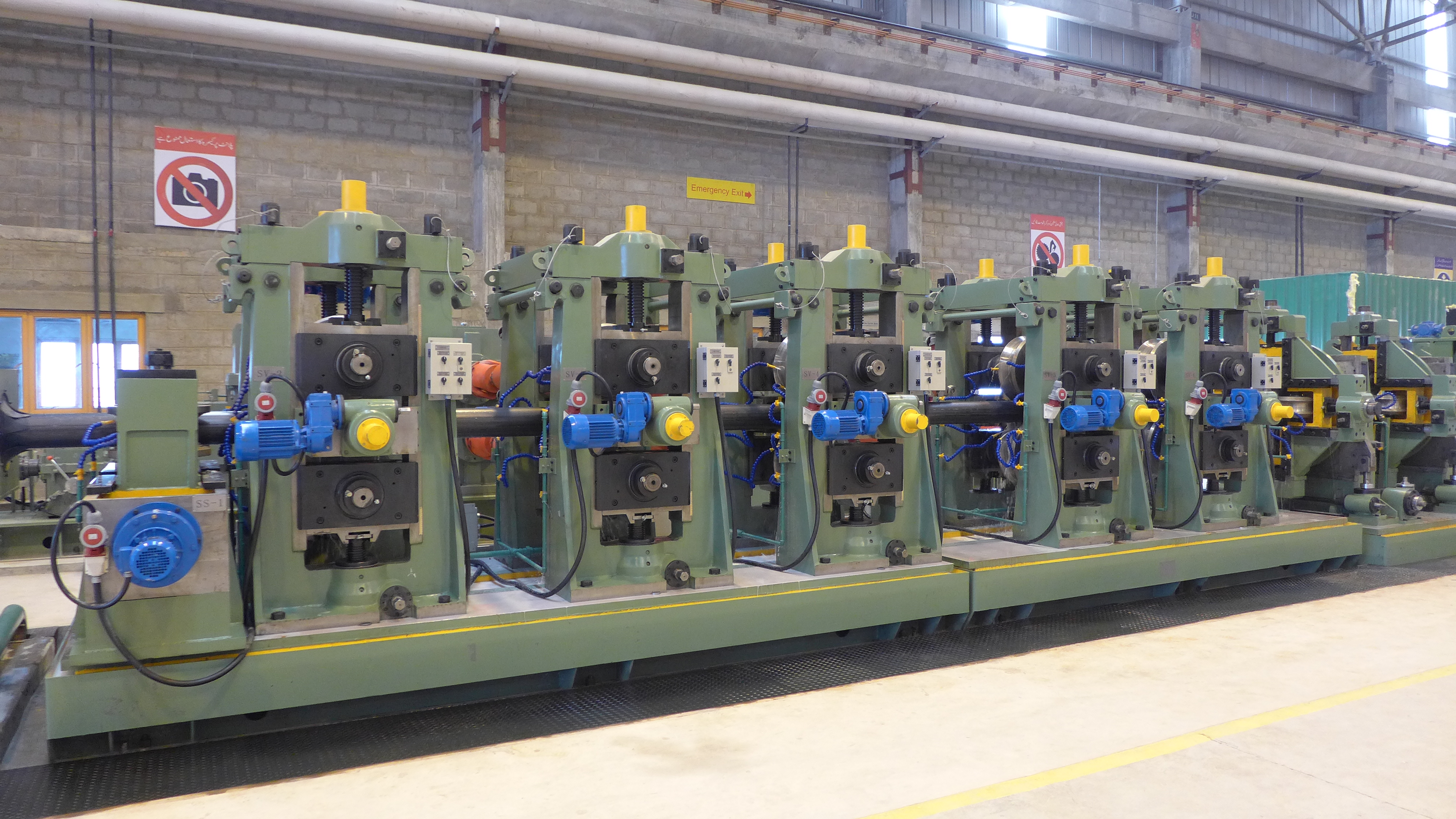

API Pipe Mill Line - Sizing Mill
8 / 8

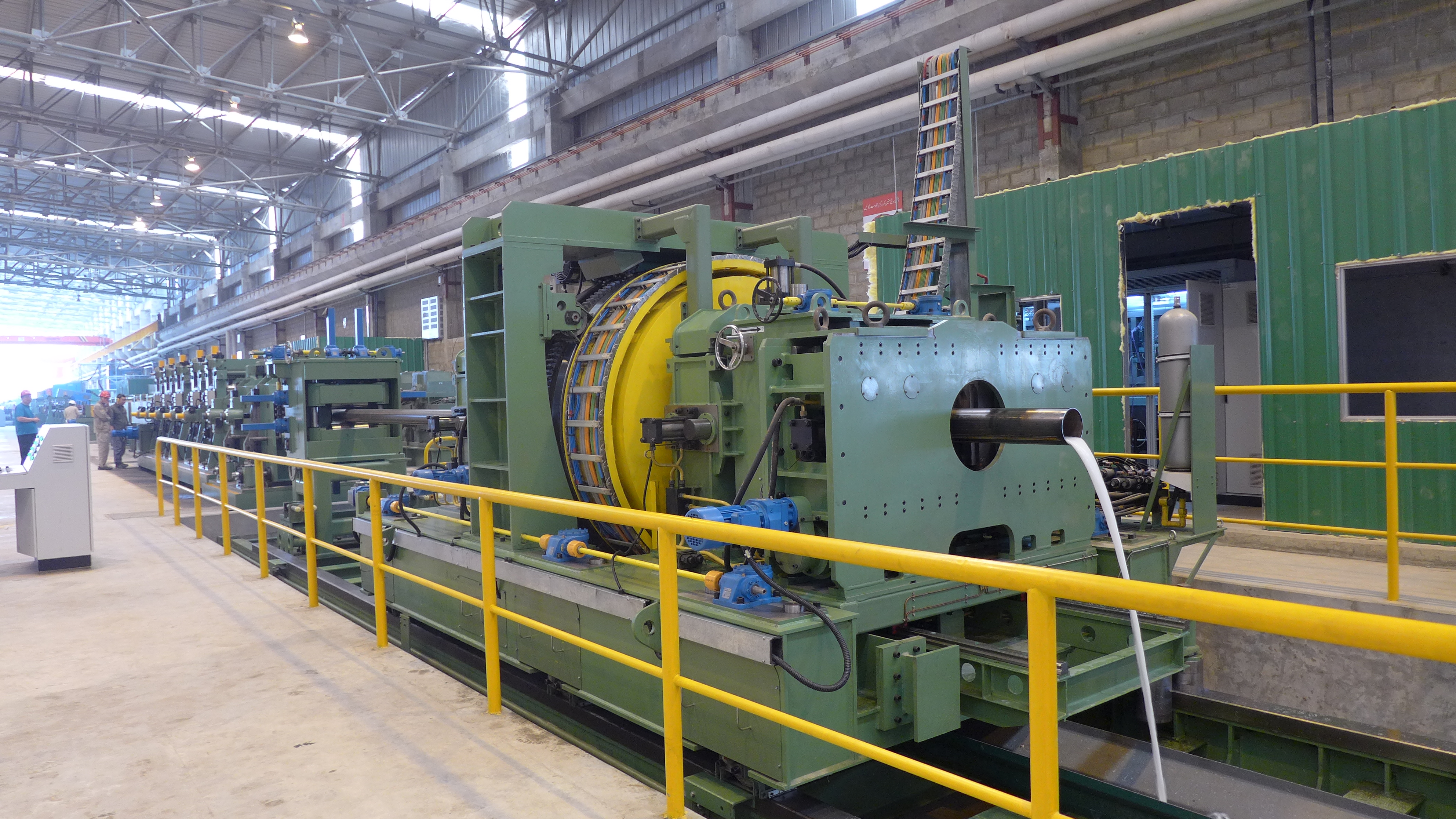

API Pipe Mill Line - Milling Cut Off
|
Video - API Mill 325
|
Heavy duty and reliable 12" API pipe mill line for API - 5L and 5CT.
Mill entry equipment, forming and sizing mill, ID scarfing, on-line UT, seam annealing, air cooling section, cold saw milling cut off, end cropping and run out system.
Finishing and testing equipment including end facer, hydrotester, internal drift test, off line UT, weighing, length measuring and marking, varnish coating, conveyor, pipe handling and bundling system.
|
|
Machine Features
- Quick change features with hydraulic pull out quick coupling to disconnect universal shaft for roll change, off line roll change tooling including spare shaft and mill top housing.
- Cold saw milling cut-off with orbital double TCT saw blade for round, square and rectangular hollow section.
- Combination roll design to minimize roll tooling cost.
- Level 2 automation and control system with coil and pipe tracking for API pipe traceability.
